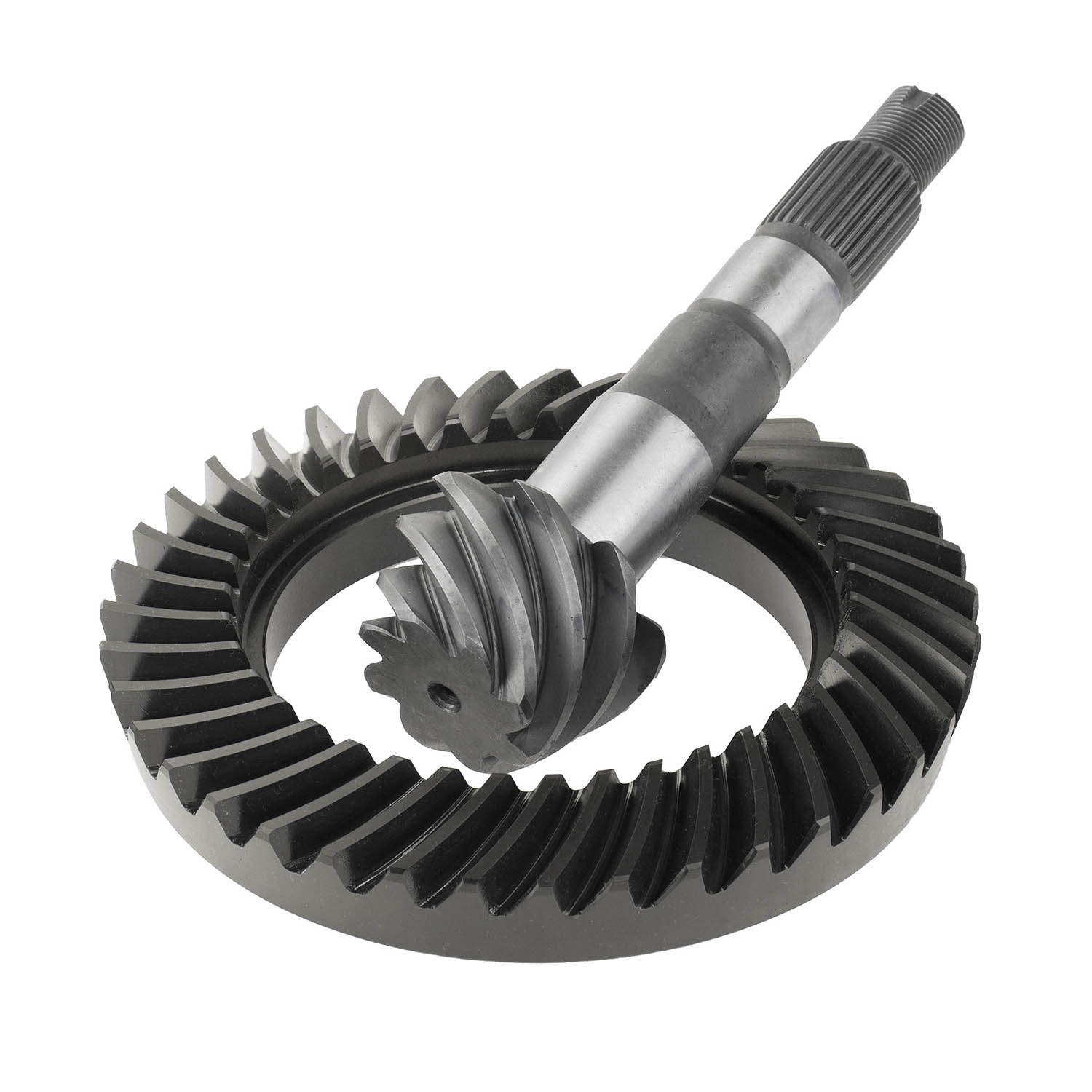

Differential Ring and Pinion (Dropout)
69-0500-1 Application Notes
Warranty
2 Years or 100,000 Miles
69-0500-1 Specifications
App Model
Toyota 8.0 Reverse Clamshell
Cover Bolt Quantity
Dropout
Differential Case Design Type
Toyota 8.0 Reverse Landcruiser
Gear Ratio
4.88
Pinion Gear Tooth Quantity
8
Pinion Shaft Diameter
1.378 (Inch)
Pinion Spline Count
29
Position
Front
Prop 65 Long Label
WARNING: Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Short Label
WARNING: Cancer - www.p65warnings.ca.gov
Prop 65 Y N
N
Ratio
4.88
Ring Gear Bolt Quantity
12
Ring Gear Material
8620 Steel
Ring Gear Outside Diameter
8.2 (Inch)
Ring Gear Rotation
Reverse
Ring Gear Tooth Quantity
39
Taxonomy A
LD Differential, LD Differential, LD Differential
Taxonomy B
Ring and Pinion, Ring and Pinion, Ring and Pinion
Taxonomy C
Front, Front, Front
Taxonomy D
4.88, 4.88, 4.88
Vehicle Applications
-
1996 – 1997 Lexus LX450
Application notes:
- For Toyota 8" Reverse
- 4.88 Ratio
- 1984-2002 Requires Part# TOYFLANGE
-
1998 – 2007 Lexus LX470
Application notes:
- For Toyota 8" Reverse
- 4.88 Ratio
- 1984-2002 Requires Part# TOYFLANGE
-
1984 – 1995 Toyota 4Runner
Application notes:
- For Toyota 8" Reverse
- 4.88 Ratio
- 1984-2002 Requires Part# TOYFLANGE
- With High Pinion Conversion
-
1985 – 2007 Toyota Land Cruiser
Application notes:
- For Toyota 8" Reverse
- 4.88 Ratio
- 1984-2002 Requires Part# TOYFLANGE
- RJ78, LJ78, LJ70, RJ70, RZJ78, HZJ78, HZJ71, HZJ72, HZJ73, HZJ74, FZH71, FZJ72, FZJ73, FZJ74, FZJ79, HZJ79, FJ80, FZJ80, HDJ80, HZJ80, HZJ81, UZJ100, HZJ105, FZJ105
