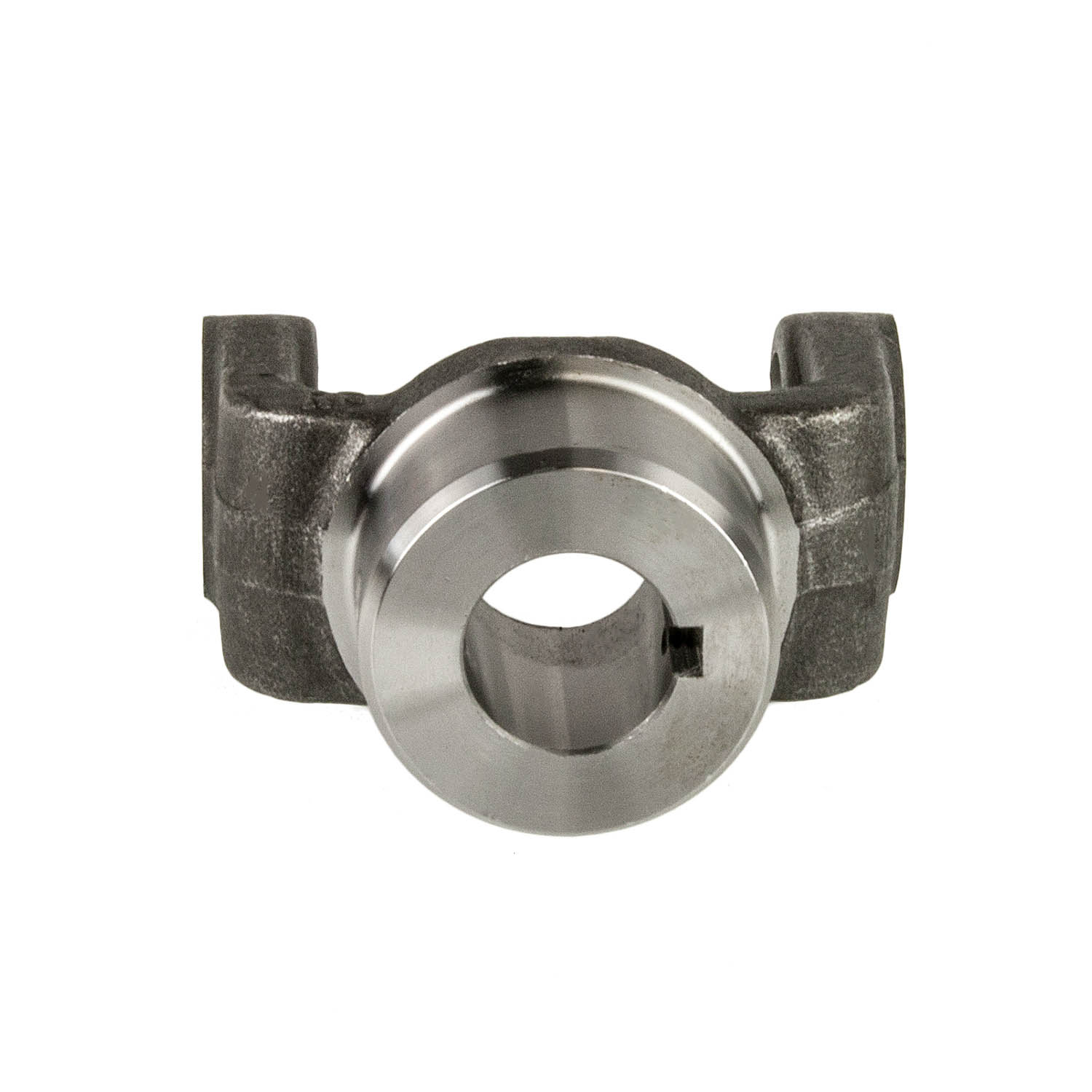

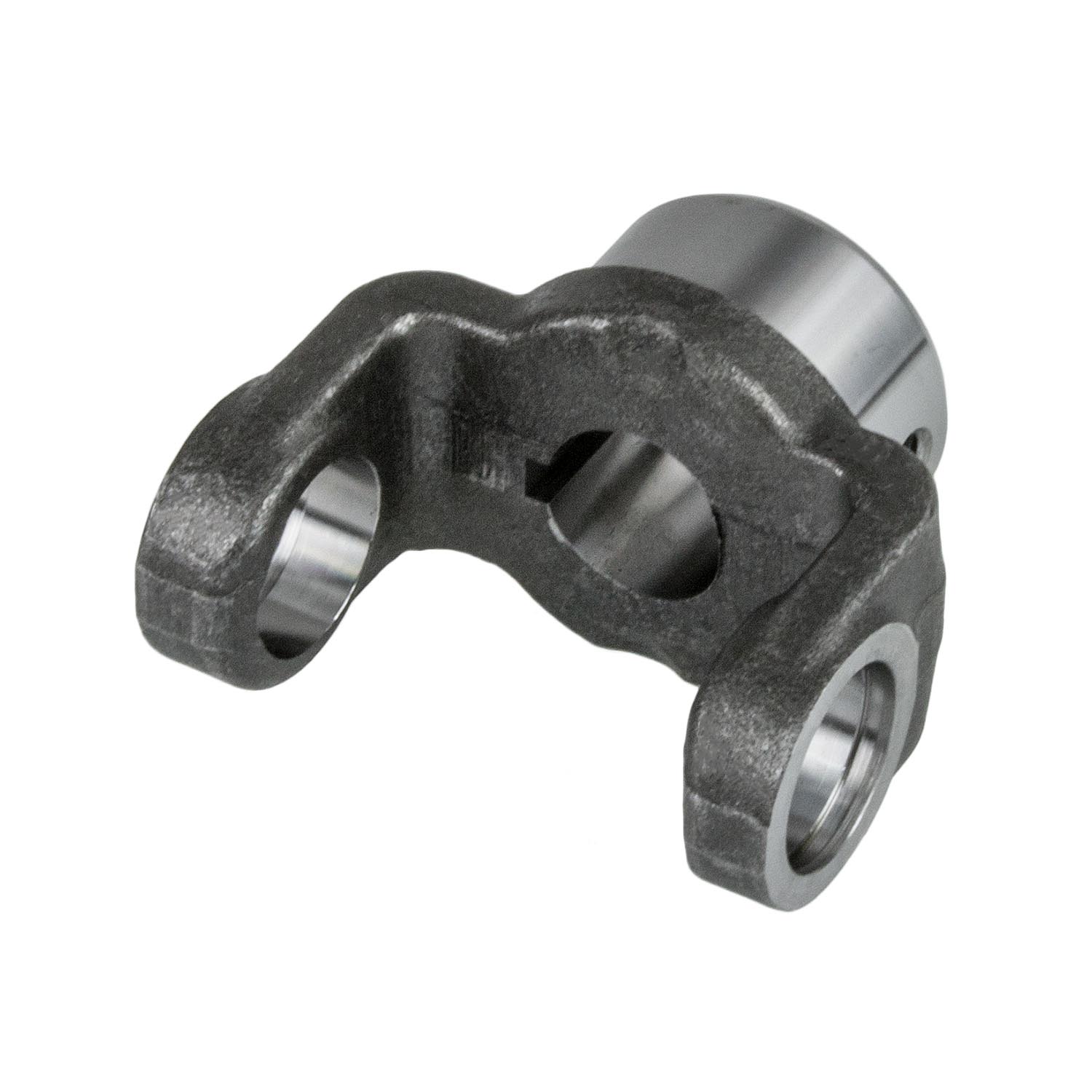

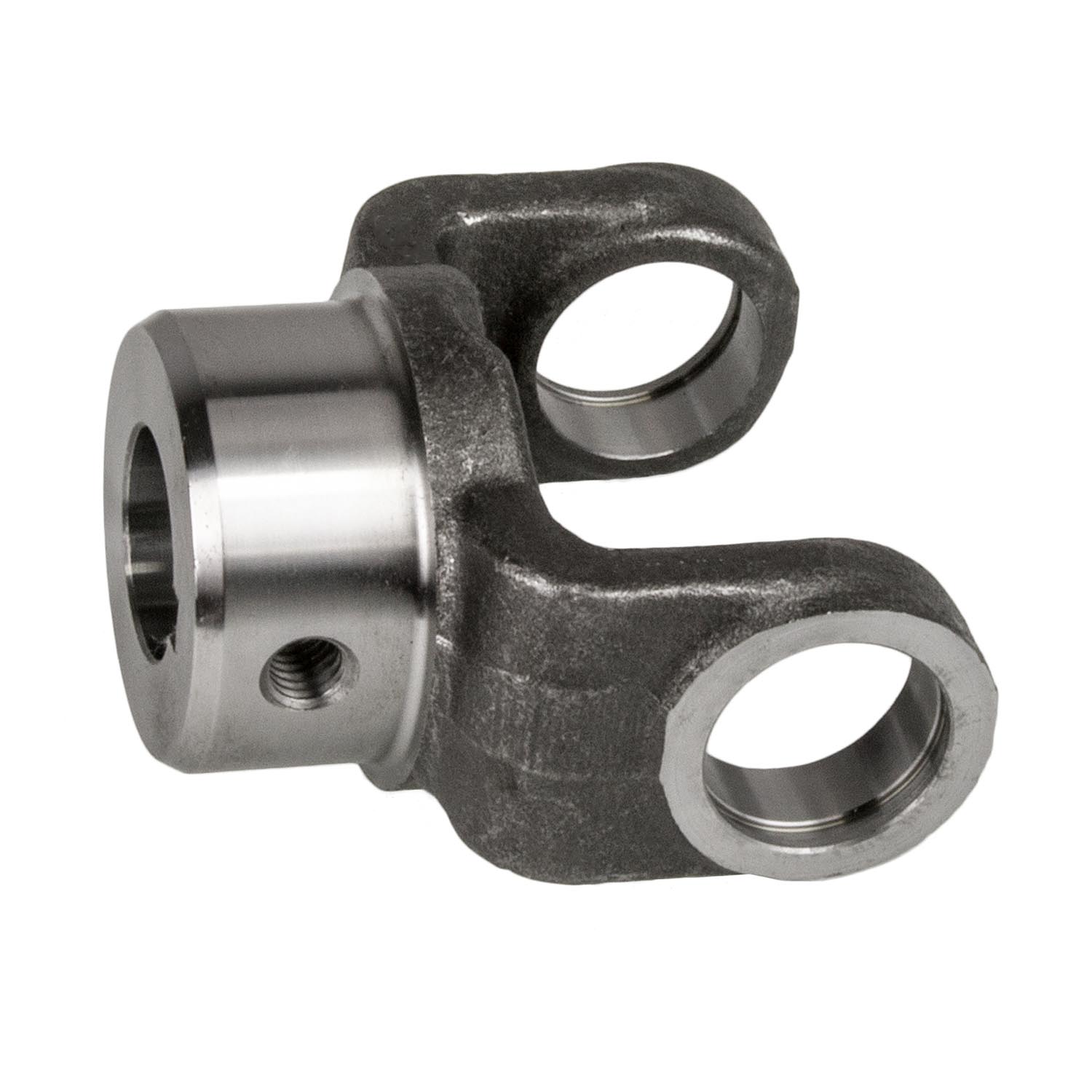

EXCEL END YOKE 1310 SERIES
96-24473 Application Notes
Warranty
96-24473 Specifications
Centerline To End Of Hub
2.562
Hole Diameter
1 (Inch)
Hub Diameter
2.125 (Inch)
Involute Spline
No
Joint Angle
17 (Degree)
Keyway Width
0.25 (Inch)
Location Of Keyway
12
Location Of Set Screw
6 & 12
Material
Steel
Maximum Hub Diameter
2.125 (Inch)
Minimum Hole Diameter
0.9995 (Inch)
Outside Yoke Dimension
3.469 (Inch)
Prop 65 Long Label
WARNING: Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Short Label
WARNING: Cancer - www.p65warnings.ca.gov
Prop 65 Y N
N
Sae Keyway Width
0.250 (Inch)
Set Screw Hole Diameter
0.375 (Inch)
Style
SR
Type
Straight Round Hole
Universal Joint Series
1310
Yoke Bearing Dimension
1.062 (Inch)
Yoke Style
SR
