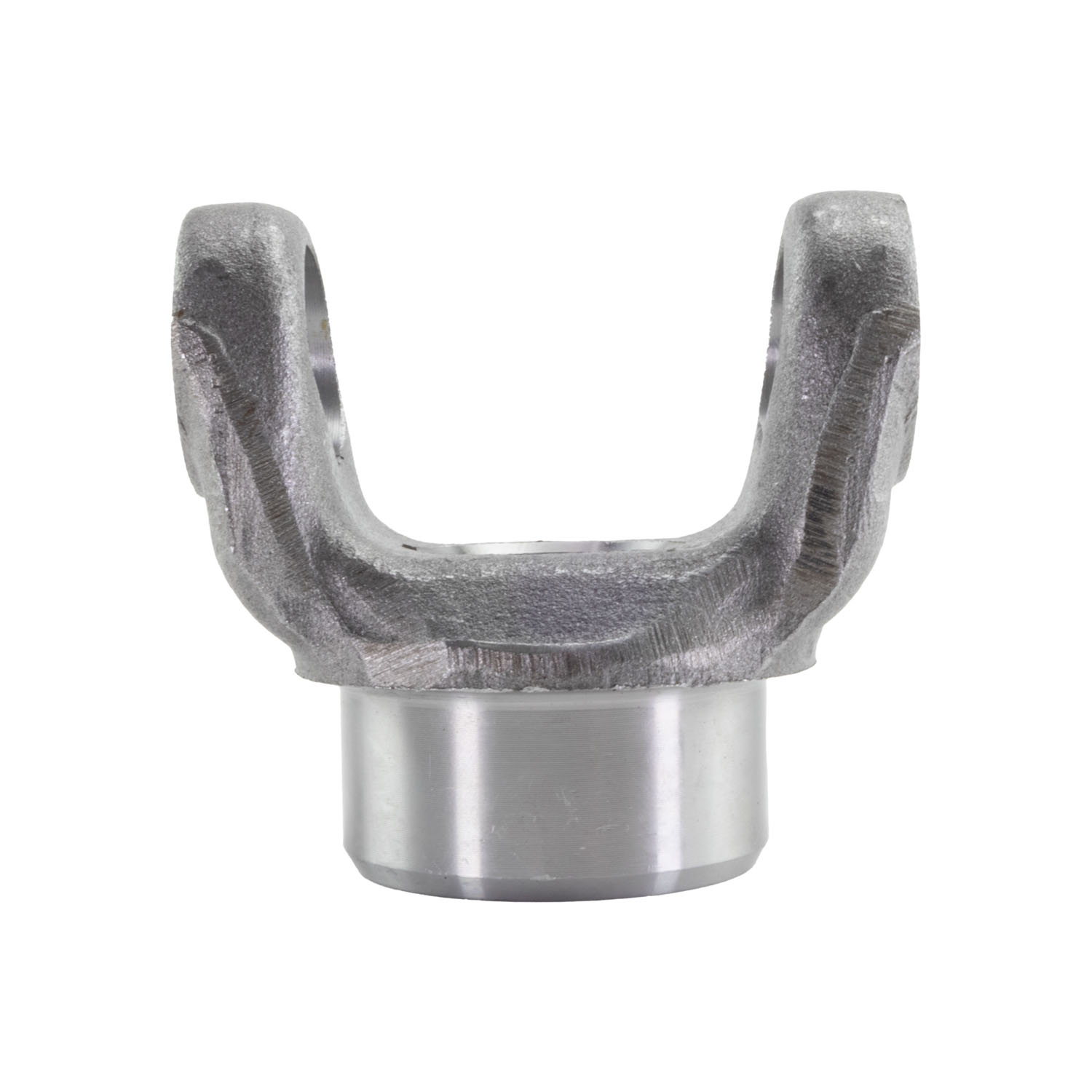

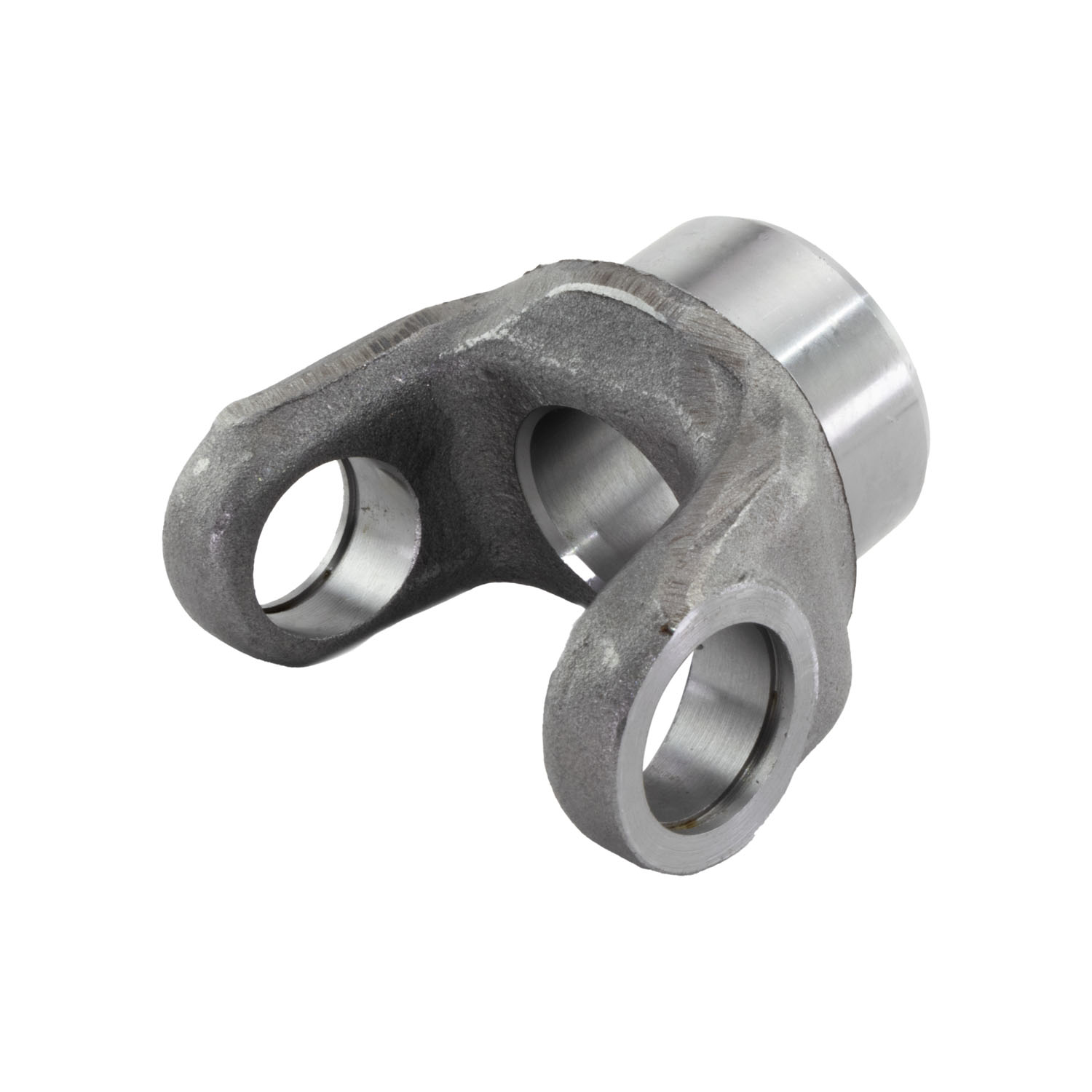

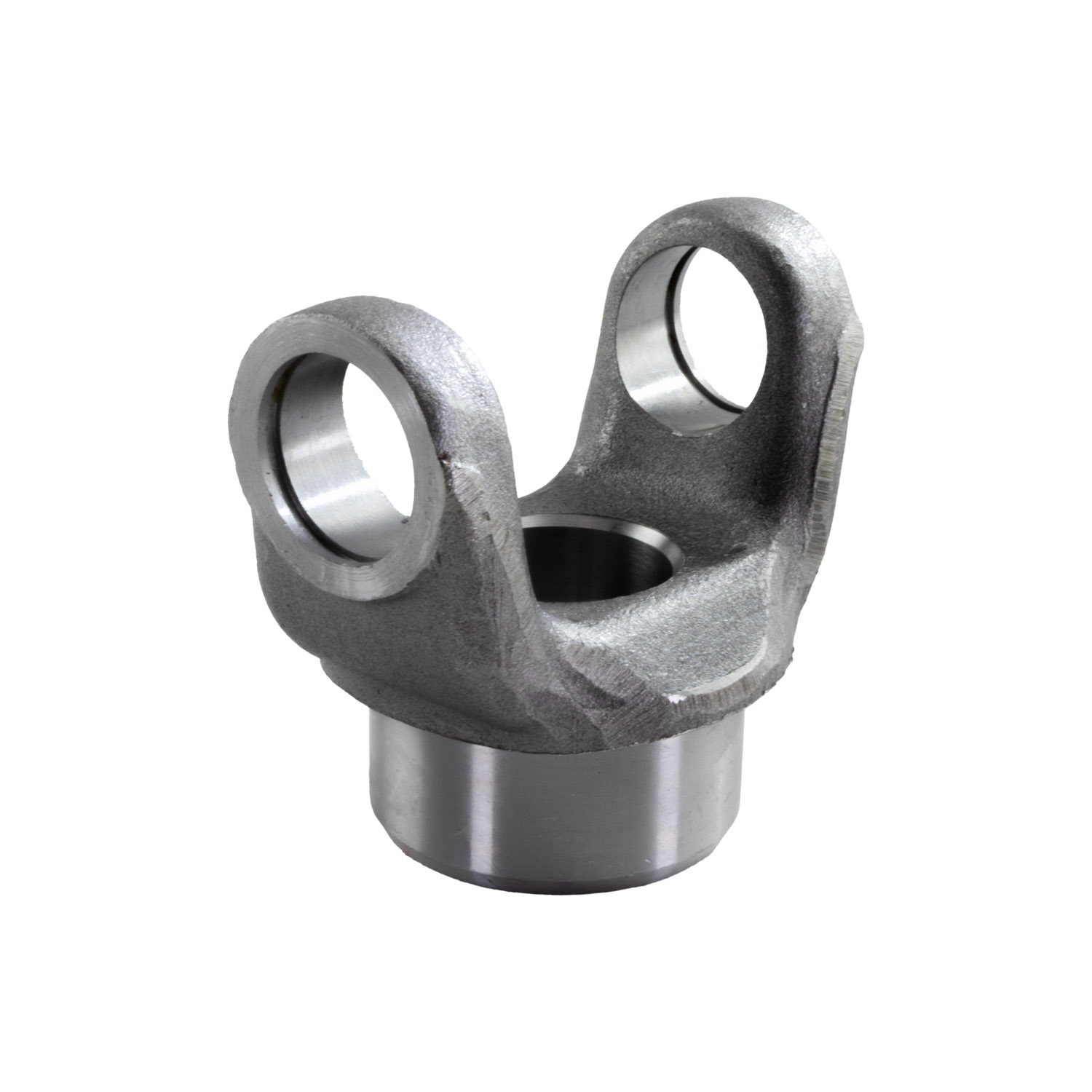

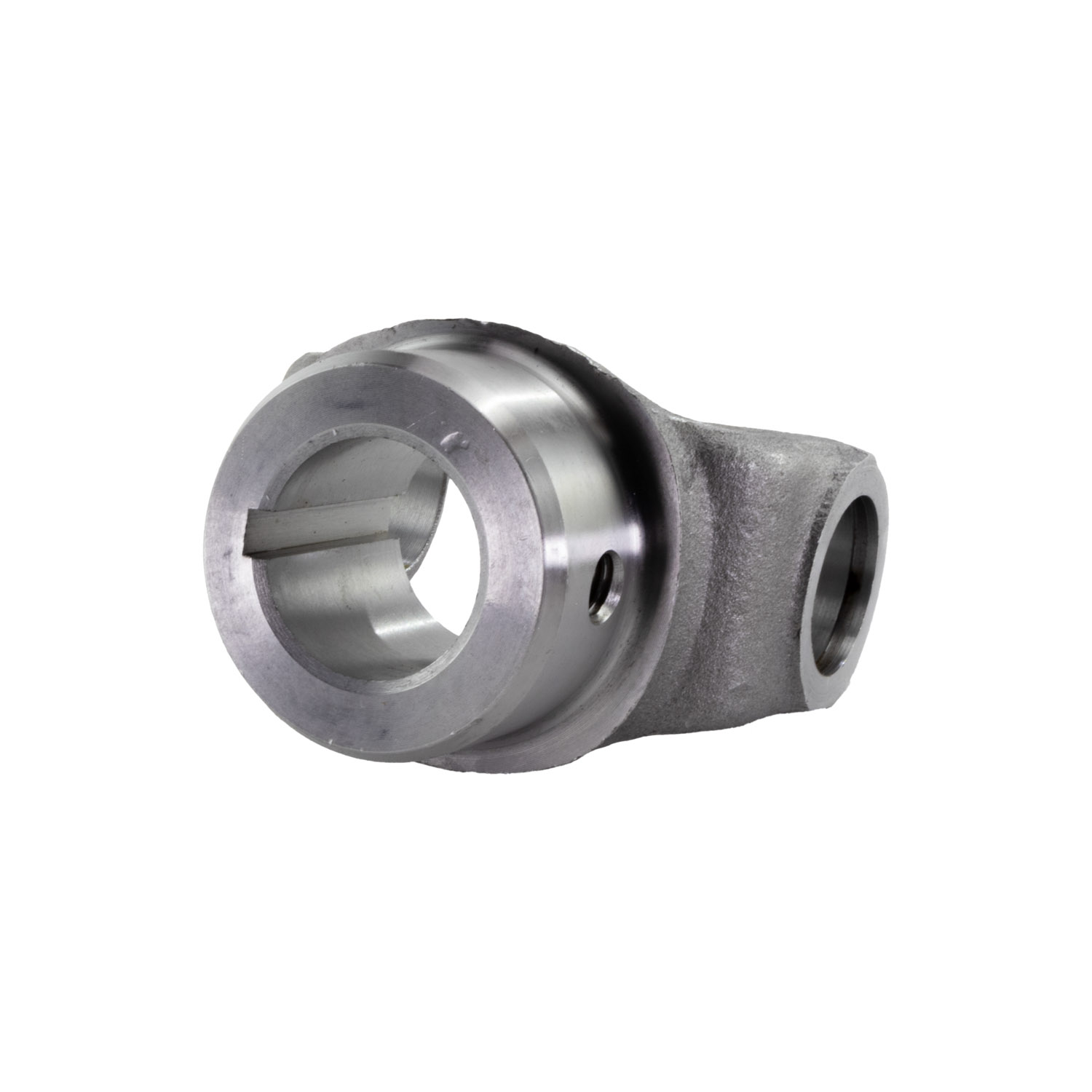

EXCEL END YOKE 1310 SERIES
96-24573 Application Notes
Warranty
96-24573 Specifications
Centerline To End Of Hub
2.562
Hole Diameter
1.250 (Inch)
Hub Diameter
2.125 (Inch)
Involute Spline
No
Keyway Width
0.250 (Inch), 0.253 (Inch)
Location Of Keyway
12
Location Of Set Screw
6
Material
Steel
Maximum Hub Diameter
2.125 (Inch)
Minimum Hole Diameter
1.2495 (Inch)
Outside Yoke Dimension
3.469 (Inch)
Prop 65 Long Label
WARNING: Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Short Label
WARNING: Cancer - www.p65warnings.ca.gov
Prop 65 Y N
N
Set Screw Hole Diameter
0.375 (Inch)
Universal Joint Series
1310
Yoke Bearing Dimension
1.062 (Inch)
